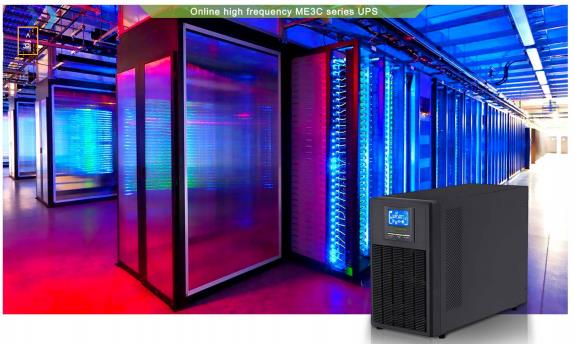

Three phase online UPS

Standalone online High Frequency UPS

ME3C Series (10-20) KVA

Uninterruptible Power Supply Pure Sine Wave 3 IN / 1 OUT UPS is designed to provide reliable backup power during outages and power outages. Advanced dual conversion technology ensures stable and continuous power supply for critical systems and equipment. Our online UPS offers a range of models that can be used for different applications, providing seamless performance and peace of mind. Experience superior power protection with our high-quality online UPS solutions.

Feature:
* Real realization of online double conversion
* High performance machine using DSP technology
* Wide power input range (190V-520V)
* The output frequency can be selectively adjusted to 50Hz/60Hz
* ECO mode provides energy saving effect (ECO)
* Emergency Power Off (EPO)
* Compatible with engine power supply
* The charger capacity is extended to 8A for longer running time
* SNMP+USB+RS-232 multiple monitoring
* Three-stage expandable charging design to ensure superior performance of the battery
* By-pass maintenance design
* Battery quantity is adjustable
* Support single-phase input

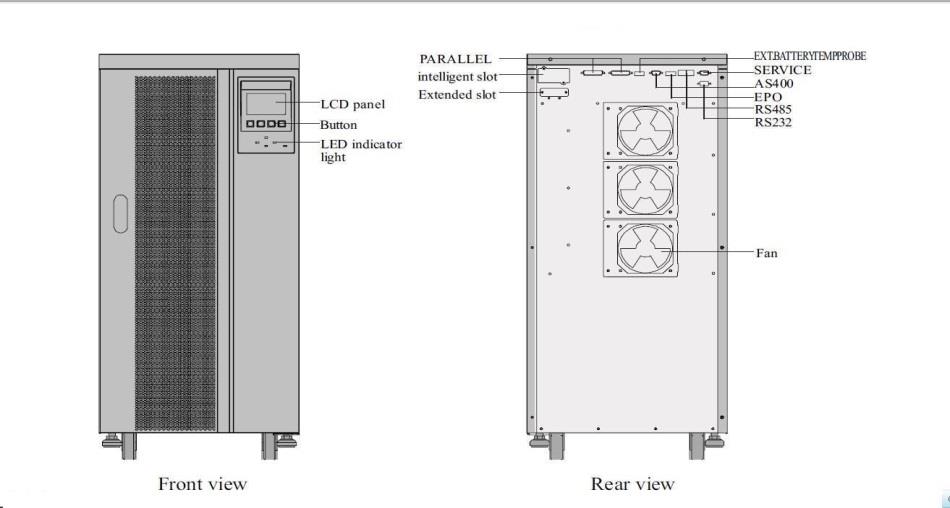

ELX3320-80K series

Three phase High frequency online UPS ELX3320K-ELX3380K is IGBT rectified uninterruptible power supply 20KVA to 80KVA, Three phase 4line and ground, 0.8 output power factor and DSP chip, is applicable to small and medium-sized data centers, network management center, computer rooms for enterprises, or able to provide solutions to conditions like voltage instantaneous drop-off or damping concussion, high-voltage pulse, voltage pulsation, surge voltage, harmonic distortion, and frequency fluctuation.

ELX33 high frequency online UPS is applicable to small and medium-sized data centers, network management center, computer rooms for enterprises, or able to provide solutions to conditions like voltage instantaneous drop-off or damping concussion, high-voltage pulse, voltage pulsation, surge voltage, harmonic distortion, and
frequency. Each single phase of the EX33 series UPS is converted to DC through an individual PFC circuit and then transferred to AC though Inverter for output. At the same time, a separate controller is provided for the real time control and data collection of PFC circuit so that the whole system can operate more harmonious or feedback the system state to the customer more promptly. In addition, the controlling of battery charging can extend the battery’s serve lifetime effectively and the twin-channel line input improves the system’s reliability.Furthermore, the series product is enhanced with excellent performance in protection level, which ensures the stability of UPS working in industrial environment with large dusts.

Features:
Excellent performance in industrial environment protection
* Just with the standard product, IP21 protection level (protecting the machine from the intrusions of solid material with the diameter larger than 12mm or the water drops) is achieved. If a higher protection level is required, the optional proof accessories can help to increase the protection level in industrial environment and safeguard the UPS’s security of operation in bad environment.
N+X parallel redundancy (compatible to battery share in the parallel mode)
* The maximum of the inbuilt parallel mode is 8 UPS without any other external accessories, which helps the customer to extend the system capacity with low cost. N stands for the minimum amount of UPS in the load and X stands for the amount of redundant UPS in the system. The bigger the number of X is, the higher the reliability of the system.
* The advanced controlling strategy is adopted to save the customer’s investment by sharing a battery unit in the parallel redundancy mode. Intelligent management of battery charging and discharging.
* The CPU controlled advanced intelligent charging of battery enables the UPS’s charger to rectify the charging parameter, and provide the optimum charging modes in the answer to the environment, types and amounts of cells, and the using condition of the battery. The scientific charging mode extends the battery’s service lifetime. The optional addition to charging units shortens the time duration for the battery units recharging.
Remote monitoring
* Communication interfaces like RS232/RS485, intelligent Slot are provided and CMC, WebPower cards of IL Mondo Italian technology Company are available for the realization of remote management and monitoring demand.
High-efficient DSP chip
* The digital Ti DSP controlling chip provides precise data processing capability with excellent performance in output and reliability.
Twin-channel line input
* The UPS provides customer security in power supply with intelligent choice between two-line input or one-line input according to the actual condition.
Flexible battery arrangement
* Flexible arrangement of the amount of accumulators in each battery (32, 30, or 28) can be achieved through the parameter resetting in the EPS33 series UPS, which effectively solves the question that the damage of some individual cell may influence the life of the whole battery unit by eliminating the damaged ones from the unit in the process of using UPS.
Outstanding electric property
* The efficiency of the machines is as high as 93% and reaches over 98% in the ECO mode, which can help to reduce the power loss of UPS.
* The ELX series UPS is designed with a broader range of input voltage from 210VAC to 475VAC, which ensures that it can be applicable in the awful grid environment or different power supply equipment like generator with its extraordinary input frequency.
* The factor that the technology of IGBT FM intelligent rectifier and inverter is used, the input power factor is as high as 0.99, and the input Current harmonic wave is as low as 3% makes the output voltage electric property more extraordinary.
* Powerful overload capacity: the UPS can work normally under the condition of 110-125% load to 10 minutes, and 1 minute in the condition of; 125-150% load. It also has the output short protection capability

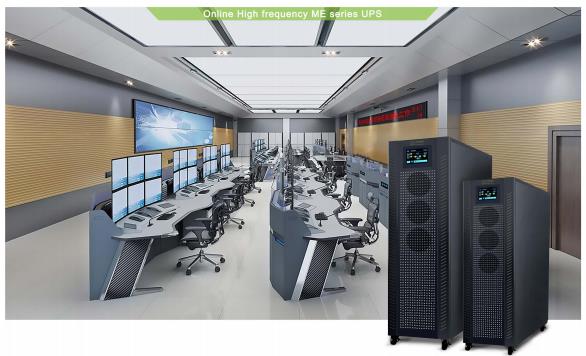

ME Series (30-250) KVA

Uninterruptible Power Supply Pure Sine Wave 3 IN / 3 OUT UPS is designed to provide reliable backup power during outages and power outages. Advanced dual conversion technology ensures stable and continuous power supply for critical systems and equipment. Our online UPS offers a range of models that can be used for different applications, providing seamless performance and peace of mind. Experience superior power protection with our high-quality online UPS solutions.

Feature:
* Pure double conversion technology
*DSP technology guarantees high performance
*Full phase active power factor correction
*50Hz/60Hz frequency converter mode
*Energy-saving ECO mode operation
*Emergency shutdown function (EPO)
*Generator compatibility
* Support single-phase input
*Dual-channel AC input (Adjustable)
*Up to 6 units run in parallel and can share batteries
*Three-stage charging design to optimize the battery performance
*Adjustable battery quantity
*Standard maintenance bypass
*Power walk-in function
*Optional isolation transformer

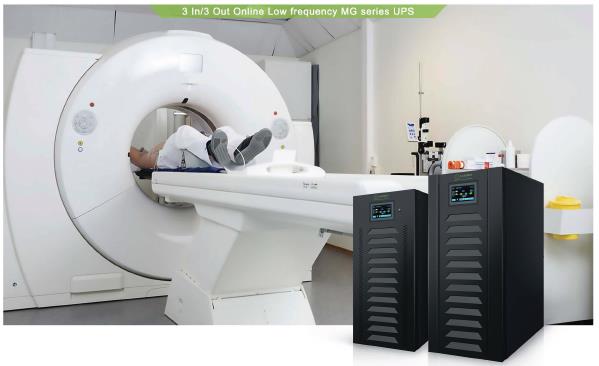

Three phase online UPS

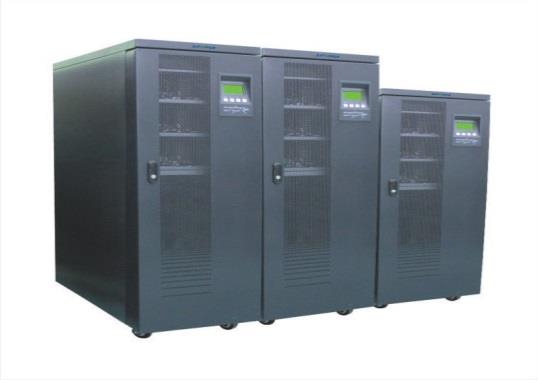

Low frequency Online UPS

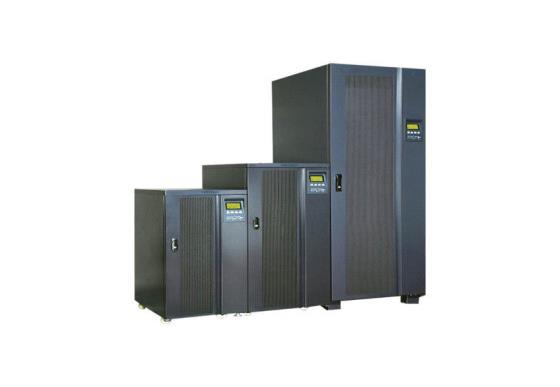

MG Series (10-200) KVA

Uninterruptible Power Supply Pure Sine Wave 3 IN / 3 OUT UPS is designed to provide reliable backup power during outages and power outages. Advanced dual conversion technology ensures stable and continuous power supply for critical systems and equipment. Our online UPS offers a range of models that can be used for different applications, providing seamless performance and peace of mind. Experience superior power protection with our high-quality online UPS solutions designed for Critical servers, Network station, Process control, Laboratory instruments, Data center front maintenance design, Medical instruments, Industrial equipment.

Feature:
* Digital control to achieve online double conversion
* Built-in output isolation transformer
* Industrial design is applied to all kinds of harsh conditions
* Front maintenance design adapts to various load conditions
* Up to 4 units can be operated in parallel
* Rich communication interface,RS232,RS485,Dry contact,USB
* DC start without mains

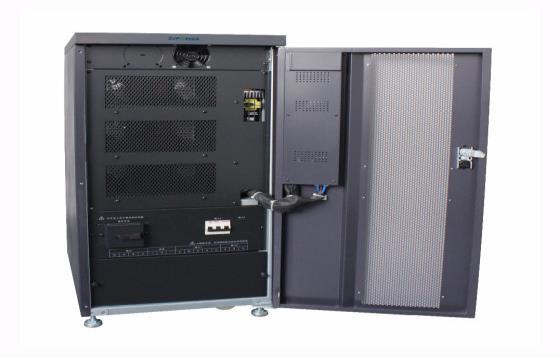

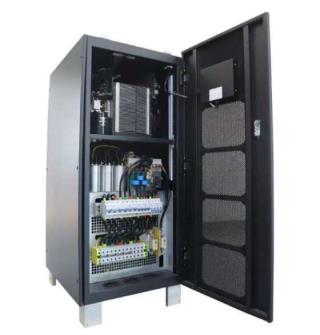

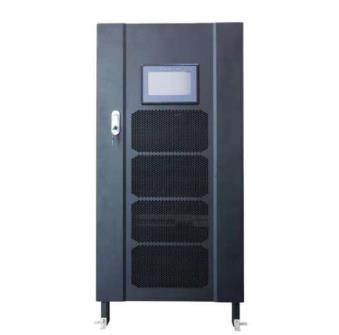

GPE33 Series(10KVA-200) KVA

GP33 series Low frequency Online UPS is most advanced and new intelligent digital UPS by ZLPOWER, range from 10kva to 400kva, three phase input and output.It is combined with high speed MCU, advanced CPLD technology, the sixth generation low consume large power, IGBT and static switch. Widely used in IDC data exchange cener, telecommunication, data center, banks, negotiable securities, traffic, arms, security, electronics, industry, large enterprises and so on.

Features:

* Intelligent inspect and monitor UPS systems every second
* The sixth generation IGBT inverter technology
* High definition touch screen LCD display and LED indicators, can show directly UPS status and operation, data records in table format, and events records.
* Adopts knock-down modular design, easy to maintain and save resources much; It is with new advanced turbofan which can release heat well and save energy; It also use non-circumfluence controlled circuit, can save electric much; GP33 UPS adopts green commute and inverter technology, ensure to provide clear energy for users; Its advanced digital circuit technology let whole UPS with 80% more life than before.
* Excellent load characters can fulfill with suddenly change load from 0 to 100%, and no need to invert to bypass, ensure output stable and reliable.
* Well-equipped protection function, including alarm function and excellent input and output under voltage overflow protection, input surge protection, phase failure protection, battery overcharge and over discharge protection, output overload short circuit protection, over heat protection and so on.
* Three phase can equal stable voltage and control separately, in order to control instantaneous overload degree of equal, realize output imbalance 100% load.
* Optional input harmonic filter or Twelve-pulse rectifier can restrain input harmonic pollution efficiently, improve UPS input power factor, and low input harmonic current.
* Optional battery inspection module, can test specification of every battery, and show on display. If battery faulty, will alarm immediately and inform administrators.
* Special set: can set UPS work status according to requirements of electric. User can choose from UPS operate mode, ECO save energy operate mode and EPS operate mode

Three phase online UPS

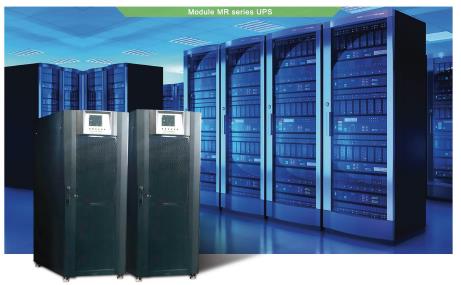

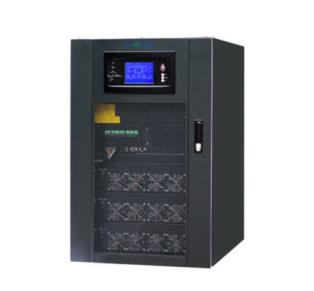

Modular MR Series 300 KVA

Maximum flexibility on a modular solution, from 20 to 60 kVA
MR is the high performance modular UPS designed to power critical loads such as data centers or servers.
Characterized by a completely Hot Swap design, MR allows you to install up 3 power modules, with 20 kVA each, and it allows to reach up to 120 kVA total power thanks to the parallel configuration.
Scalability and redundancy are then further strengths of this innovative UPS solution.
The best technological performance
MR is made with latest generation components such as the 3-level IGBT inverter with digital DSP control and the advanced technology IGBT rectifier.
Each module of this threephase UPS is equipped with its own battery charger with single or double charge level, temperature compensation, and end-of-discharge control. For best battery management it is also possible to carry out automatic or manual tests, so to monitor batteries status and to prevent any kind of fault.
Advanced communication
MR is equipped with a large touchscreen display that allows to set all the main parameters. The system is protected by three password levels in order to protect saved data and the access to setting functions.
It is possible to proceed with emergency shutdown directly from the EPO (Emergency Power Off) button, so to ensure maximum system safety.
HOT SWAP technology
MR is characterized by a completely Hot Swap structure that allows you to quickly and easily extract the power modules, as well as the static bypass module, and it guarantees maximum safety thanks to the n + 1 redundancy functionality.
Each new module inserted on the UPS is automatically setup depending on the new total power available.

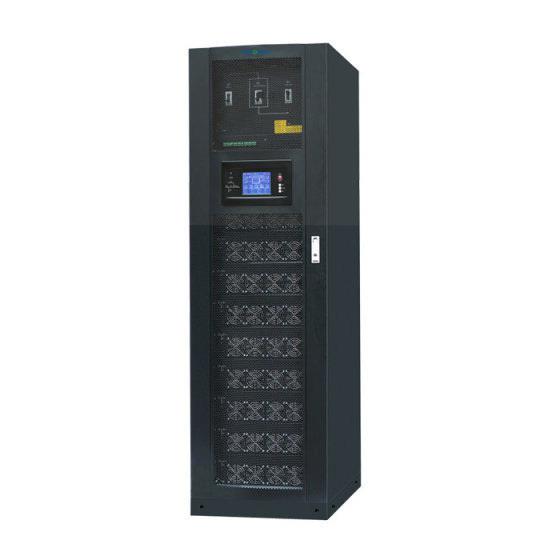

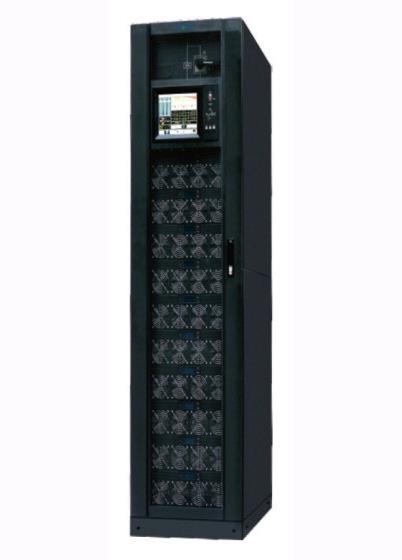

RMG Series Modular UPS 40-500kVA

The RMG 500kVA series modular, online UPS ranging from 40KVA to 500kVA is designed to protect any critical load for medium and largedata center achieving maximum availability. The 95M series feature the latest technology of 3-evel technology and PFC inputcontrol, which guarantees high efficiency of 96% and ultra-reliability. ts compact design ensures power density of 500KVA in onecabinet, 3 units can be paralleled for capacity or redundancy up to 1500kVA, making it an excellent choice for medium and large facilities.

Features：
* Compact design 500kVA in one cabinet, footprint less than 1.45m²，saving valuable room spaceHigh scalability
* The system can be configured from 40kVA to 500kVA in one single cabinet,3 units in parallel for a capacity up to 1500kVA
* High power density 50kVA power module in 4 U height
* Friendly HMI
* capacity expansion 10.4” touch color LCD with graphic display,independent LCD for each power module
* High efficiency
* Advanced 3-level technology guarantees high efficiency operating in double conversion mode up to 96%
* Smart sleep function
* System can intelligently shutdown some powermodules to increase total load rate, achievinghigher efficiency
* Intelligent charging management
* The system intelligently control the whole process of the charging and discharging, effectively improve the life time of the battery
* Multi communication interface
* Provide RS232,RS485,USB,SNMP,AS400and programmable dry contacts

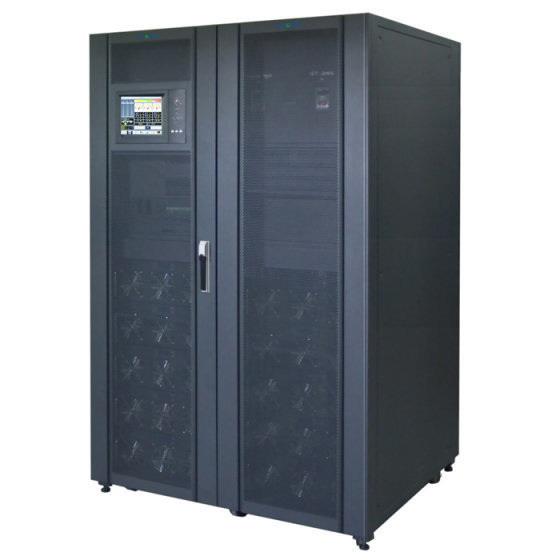

RMG Series Modular UPS 25-600kVA

The RMG600kVAseries modular UPS provides the mostcompact footprint of less than 2m with maximumcapacity of 900kVA.With best reliability and highperformance, it has been leading the domesticmarket for years.

Features：

* Each power module has an independent LCD, gives users’ direct overview of status data and alarms in real time
* Provide graphical and text based information of alarms, status data, instructions that users can have more friendly and safer operation
* High power density, footprint for 300kVA is 0.66m², power density 409kW/m², saving valuable data center space
* Scalable from 30kVA to 900kVA, max 30 power modules in parallel
UPS LCD Screen in multi languages Chinese/English / Russian / Germany / Spanish / Italian / French
* Smart Sleep function can intelligently make some power modules go to sleep when load is relatively low, improving the efficiency of the remaining power modules and saving customers on power and cooling costs.
* Improving efficiency,reducing power and cooling costs
* Easy setting with just two steps. Customers can select sleep mode and rotation period
* Power modules working in rotation, prolong the life time

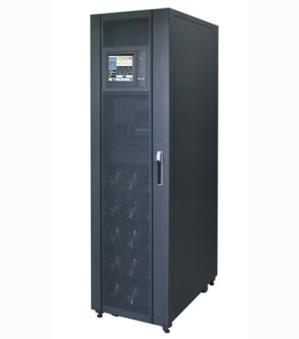

RMG Series Modular UPS 20-200KVA

RMG series is modular online UPS for sensitive equipment’s. The single cabinet power rating covers from 20kVA to 200KVA.With the latest IGBT three-level and full DSP control technology, the 92M series delivers the best of combination of reliability,hot swappable and

Features：

* Modular design Up to 20 power modules in parallel online hot-swappable N+X redundancy
* LCD Screen in multi languages Chinese/English / Russian / Germany / Spanish / Italian / French
* Independent charger
* Independent charger for each module and intelligently control the whole charging process, prolong the life time of the battery
* Battery cold start UPS can be powered on from the battery without utility
* Easy connection access Top and bottom cable entry connection are supported, more convenient for site installation
* Modular design with transformer Modular UPS up to 60KVA with in-built isolation transformer, meeting different requirement for customers
* High power density 200KVA with footprints of about 0.5㎡, saving valuable data center space
* Integrated IGBT design Integrated IGBT in one module, less failure points with higher performance and reliability
* Friendly interface Touch LCD display with abundant information
* Independent air channel
* Cooling air runs in isolated channel, keeping PCB free of dust

Outdoor UPS

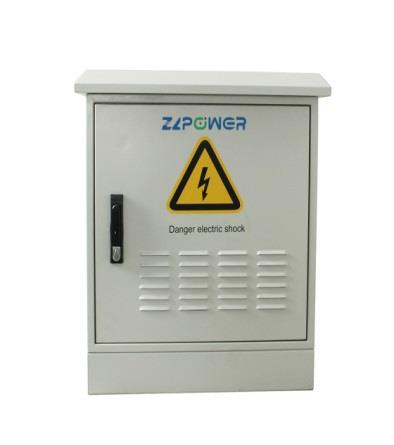

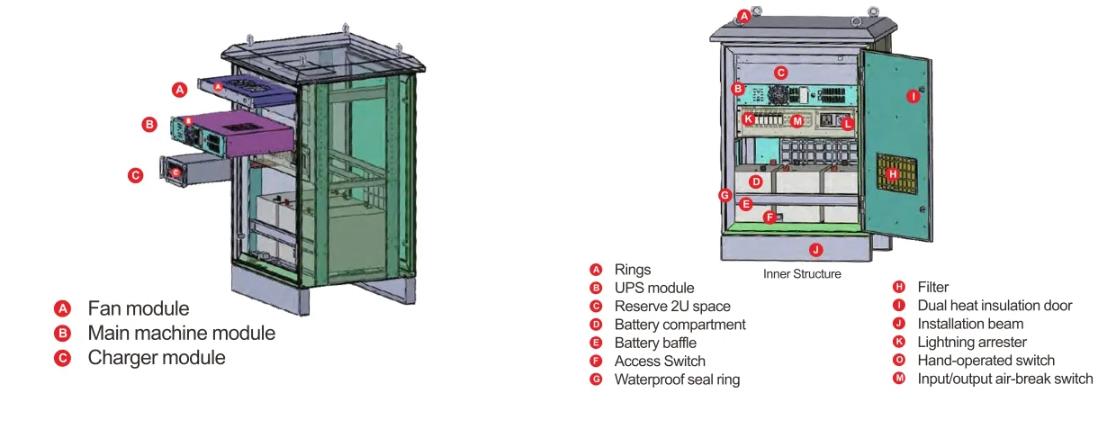

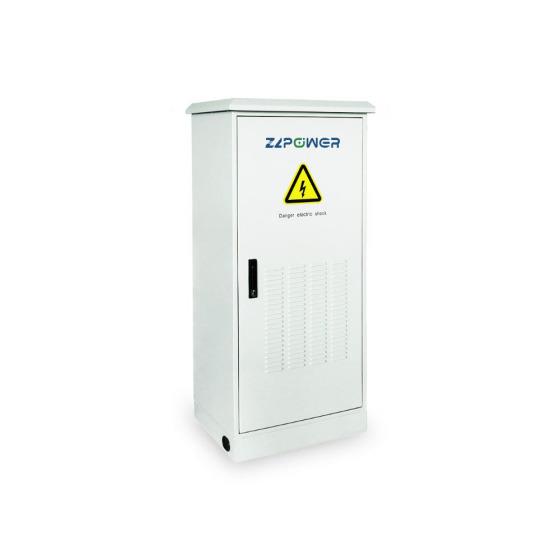

RPA Online Outdoor UPS 1-3KVA IP65

RPA series High frequency outdoor UPS is used In suburban district, remote road or mountain, severe environment such as areas with high temperature(50℃), severe dust, moisture, rain, mist erosion, poor grid power quality(voltage durative higher than 260V or less than 160V, Frequency abnormal change).

Feature:
* Provides a pure uninterrupted AC sine wave power supply for the outdoor communication / network equipment.
* The use of high temperature, anti-cold, salt spray, anti-corrosion, anti-dust, waterproof, lightning protection design.
* Advanced MCU microprocessor control Technology, ensure long life reliability.
* Excellent Protection against over voltage, overload, over current, overcharge and so on.
* Strong anti-jamming capacity, Lightning, surge, short-circuit, network/fax/modem surge protection. Input L and N lines reverse wiring detection.
* DC start function, input RFC reuses function.
* Humanized bypass output adjustable.
* Available to work with generators.
* RS232 intelligent communication monitoring.
* AS-400 Dry contact and SNMP cars remote intelligent control.

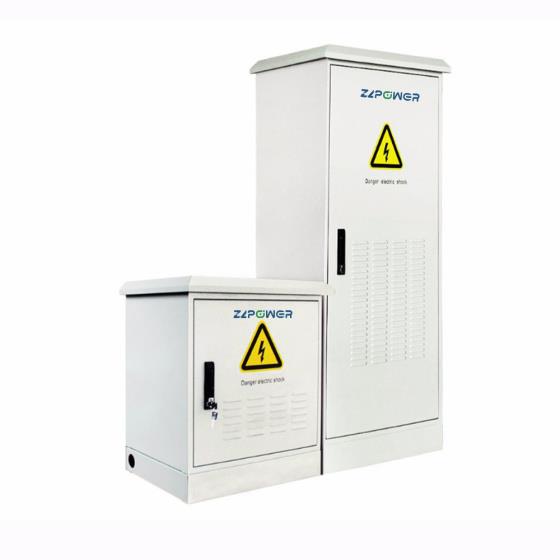

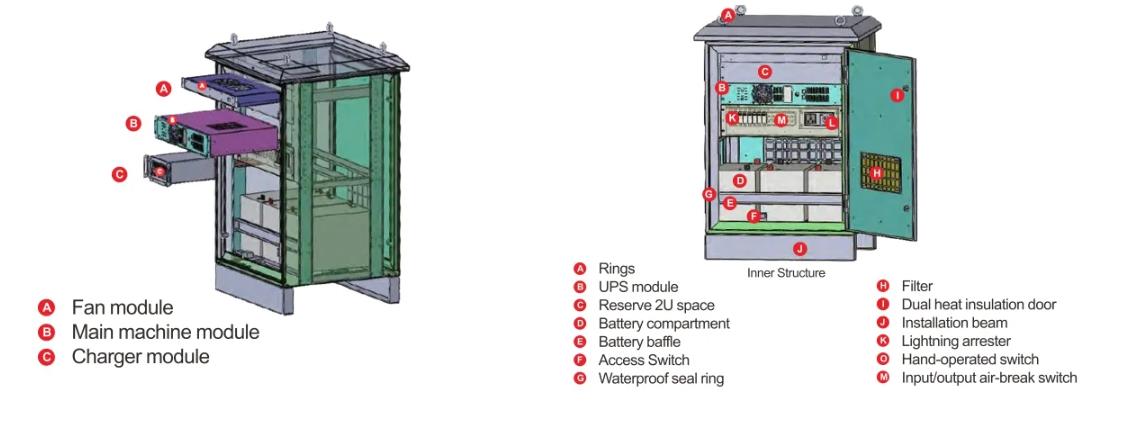

RPA Online Outdoor UPS 6-10KVA IP65

RPA series High frequency outdoor UPS is used In suburban district, remote road or mountain, severe environment such as areas with high temperature(50℃ ), severe dust, moisture, rain, mist erosion, poor grid power quality(voltage durative higher than 260V or less than 160V, Frequency abnormal change).

Feature:
* Real realization of online double conversion
* Provides a pure uninterrupted AC sine wave power supply for the outdoor communication / network equipment.
* The use of high temperature, anti-cold, salt spray, anti-corrosion, anti-dust, waterproof, lightning protection design.
* Advanced MCU microprocessor control Technology, ensure long life reliability.
* Excellent Protection against over voltage, overload, over current, overcharge and so on.
* Strong anti-jamming capacity, Lightning, surge, short-circuit, network/fax/modem surge protection. Input L and N lines reverse wiring detection.
* DC start function, input RFC reuses function.
* Humanized bypass output adjustable.
* Available to work with generators.
* RS232 intelligent communication monitoring.
* AS-400 Dry contact and SNMP cars remote intelligent control.
